The GigRig
£429.00
Tax included.

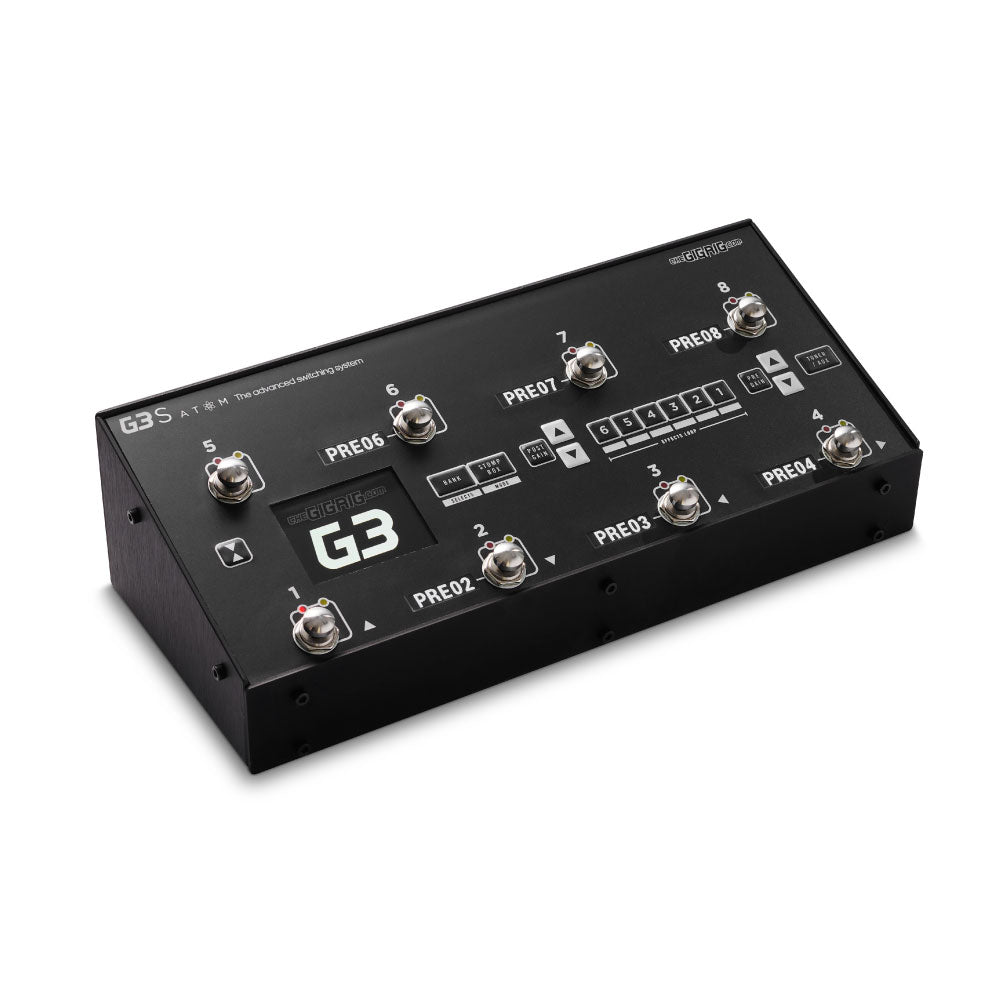

You already own the awesome G3 Atom but would love to add the new preset screens to your switching system without having to buy a whole new unit?


Good News! We're offering the ability to upgrade your unit by simply swapping out the Atom top board for G3S Atom. All Atom units are compatible with this upgrade.

We've created a simple step by step video for you to follow so you can carry out the upgrade yourself in less than 30 mins so no need to worry about having to send your unit back to us.

FAQ's

Can I install it myself?

Absolutely, its very simple to do and the upgrade kit includes everything you need to do this.

What can I do with my old Topboard?

You can either keep your topboard, or alternatively you can ship it back to us to recycle on your behalf. Contact contact us for more information

  • 99 Banks with up to 16 Pre-sets per Bank
  • Programable Pre Effects Loop Buffer/Boost
  • Programable Post Effects Loop True Stereo VCA Amplifier
  • 6 x True-Bypass passive Stereo effects loops
  • Fully movable loops - Reorganise your entire signal chain, Per Pre-set, in seconds
  • 2 x Programable Outputs one of which is transformer isolated and phase reversible to eliminate earth loops and phase problems when using two amps
  • Built in Parallel and Wet/Dry configuration
  • Send up to 20 x programable mappable PC/CC MIDI Messages per pre-set
  • 2 x Expression pedal inputs capable of controlling the onboard pre and post effect loop amplifiers as well as sending multiple MIDI CC messages, each with separate heel/toe values
  • Program Reverb and Delay Trails/Spillover from any loop or combination of loops
  • Simple intuitive programming via easily navigated built in menu system
  • Ultra clean signal path to ensure your guitar signal is as pure as possible
  • Bluetooth enabled - *Connect to G3 iOS app to update software, backup pre-sets, and edit song lists
  • High Resolution Ultra-Bright TFT LCD screen displaying Bank, Pre-set Number /Name and Pre/Post Gain levels and menu system (Brightness Adjustable)
  • Black anodized aluminium chassis – Light weight and hard wearing
  • Water resistant/ splash proof overlay with quick select, tactile embossed membrane switches
  • 8 x GigRig 'Optokick' Optical Footswitches - Designed by The GigRig, our footswitches use light instead of mechanics to do the foot switching and are milled from stainless steel, making them more robust than their mechanical alternatives. We believe these are the most reliable foot switches in the world.
  • Physical size: 29cm x 13cm x 7.8cm / 11.4" x 5.1" x 3.07"
  • Screen size: Approximately 5 x 3.8cm / 1.96"x 1.5"
  • Power Requirements: 9V DC (2.1mm centre neg) @ 850mA.We recommend the use of The GigRig Generator power supply supplied with The G3 Switching System.
  • Weight: 1.65kgs / 3.64lbs
  • G3 ATOM USER MANUAL
