The GigRig
★★★★★ (1)
£299.00

IN STOCK

Big Power. Small Board.

A compact, high-current power supply designed for serious rigs in smaller spaces.
Fully isolated. Ultra quiet. Built to expand.

Plus with a FREE set of 4 super handy DC cable converters to power up your favourite pedals you gain the Power You Need, without the Bulk.

Need more? The GenX8 is part of our modular power ecosystem.

Add a GenX4LC for four low-current analog pedals-powered by our Virtual Battery technology for the cleanest tone possible or plug in a High-Current Adapter for even more juice when your rig grows.

The GENX8 is designed to be used with our cut-to-length, solderless DC cables - for a pro install that’s clean, quiet, and totally reliable.

Confused? Don't be. Power can get complicated. We offer a Power Path Diagram service to help you understand exactly what you need to power your rig.

GENX8 Outputs

6 x 9VDC@500mA: 6 individual 9VDC outputs capable of 500mA each. This is for your current hungry digital pedals from brands like Strymon, Eventide, Line6 etc. Each output will deliver exactly what these pedals need to operate at their best.

2 x 9/12VDC@1000mA: If you run valve OD’s/preamps, or something like a H90, these will need a huge amount of current to keep the pedal operating in the range it needs to be. These two outputs can each deliver a massive 1000mA each at either 9 or 12VDC. For pedals such as Kingsley and Effectrode this amount of current is a must and delivered beautifully by the GENX8.

Each of the 1000mA outputs has two sets of connection tabs. It might be that you want to power a high current digital pedal and something else. The two sets of connection tabs for each of the 1000mA outputs gives you this option.

DC Input: Plug your DC power in here. GenX8 is designed to work with the 24V DC power supply provided but it will work on a wide voltage range from 9-34V DC.

IMPORTANT - Whatever you put into the DC INPUT will appear on the LINK OUT. Using the supplied 24V power supply, you will get 24V on the link out.

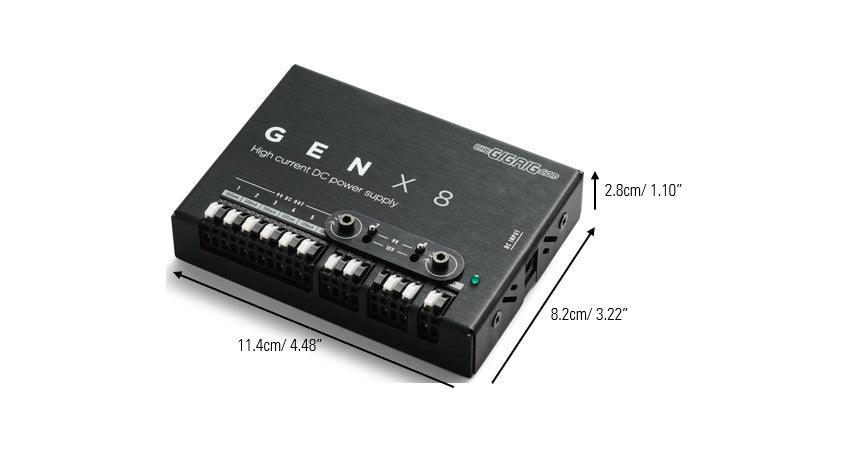

Dimensions

Length: 11.4cm / 4.48"

Width: 8.2cm / 3.22"

Height: 2.8/ 1.10"

24V Power Supply:

Length: 13.2cm / 5.19"

Width: 5.7cm / 2.24"

Height: 3.2cm / 1.25"

Power

6x 9V @500mA

2x 9 or 12V@1000mA

The GigRig warrants the product to be free from defects in material and workmanship for a period of 1 year from the original date of purchase.


For full details on our warranty, please see product manuals.

Manufacturer:
The GigRig Ltd, Unit 15 Whitehill Industrial Pk, Royal Wootton Bassett, SN4 7DB

Authorised
Representative: EAS - Mustamäe tee 50, 10621 Tallinn, Estonia

Warning: For
indoor use only. Keep away from water. Keep away from Children.

★★★★★
★★★★★
★★★★★
★★★★★
