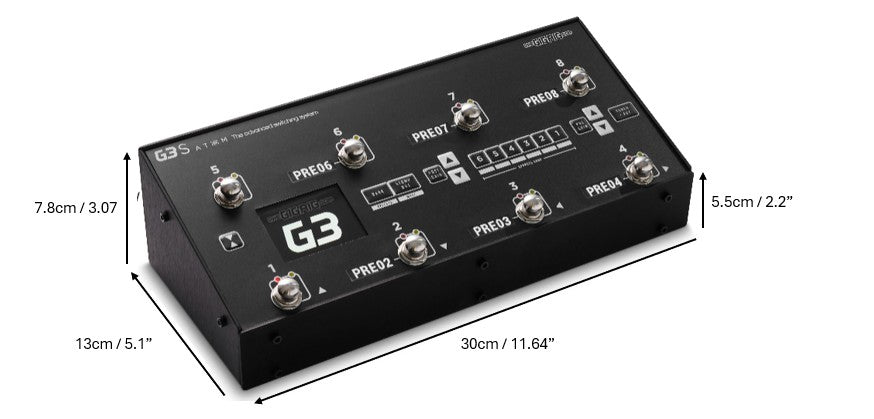

G3 Atom S with Dimension details
G3 Atom S with Dimension details
The GigRig G3 Atom Effect Switching System - Connections
The GigRig G3 Atom Effect Switching System - Connections
G3S ATOM Switching System
G3S ATOM Switching System
G3 Atom switching system - choose your power lead
G3 Atom switching system - choose your power lead
The GigRig Generator 9v DC power Supply
The GigRig Generator 9v DC power Supply
G3 S Atom Switching system top view
G3 Atom S with Dimension details
The GigRig G3 Atom Effect Switching System - Connections
G3 Atom switching system - choose your power lead
The GigRig Generator 9v DC power Supply

G3S ATOM Switching System

Tax included.
Tax included for UK only. Ex VAT price displayed for all other shipping destinations


Due to the current G3 wait list we have reintroduced the 50% deposit option so you can secure your place in the queue.
Select the 'Partial Pay' option and add the product to cart. At checkout you will pay an initial partial payment and you will receive a notification to pay any outstanding balance via email, 1 week prior to dispatch.


Hear your pedalboard’s effects as they were designed to sound, unencumbered by the compromises of a standard pedalboard setup.

Introducing G3S Atom, its Atom built with screens next to each footswitch… finally!

Since the launch of our G2 Pedalboard Switcher in 2013 we’ve never stopped dreaming about what would be next. 2020 saw the evolution of our G switching system - the mighty G3 and G3 Atom with their unparalleled signal path flexibility, MIDI control, and intuitive programming.

To this day the G3 range sets the standard for professional effects pedalboard control, allowing you to concentrate on the important thing - playing.

We’ve continued to bring new features such as Hi-Def Isolated Output (so no colouration through traditional transformers), as well as updated software including MIDI Sequencer, extra stompbox modes, Expression Pedal Inputs, and MIDI commands when turning presets on and off.

But there's one feature we've always wanted to add... something to help ease the pressure of remembering or manually labelling... a digital display for EACH footswitch.

The G3S Atom features 6 additional dedicated footswitch screens alongside the Main G3 Atom screen, in total providing preset labels for all 8 switches.

These OLED displays are designed to be visible in any light and on even the darkest of stages - all without drawing any more current away from your power supply, and each display featuring up to five characters.

With its built-in Bluetooth you can connect to our new G3 Web Editor, or via the G3 iOS app to edit and label your 99 banks of Presets, update software, run system backups, and edit your song lists with ease.

For all the things that G3S Atom does, we've never forgotten the most important thing and that's what G3S doesn't do...

The G3 range will not load or colour your guitar tone, letting you hear your effects and amps as they were designed to sound.

The G3 delivered a new standard for those seeking the ultimate control and tonal transparency - and the G3S and G3S Atom are the icing on the cake.

We compromised on nothing.

NEW! - G3 Bluetooth Web Editor!

Ships with a GigRig Generator Power Supply as standard - The heart of our Modular Power Supply range. Please select your desired mains power lead when adding to cart.

Choose to upgrade your power supply to the New Gen-X-14 DC Power supply when you add to cart and we'll swap out the Generator.

Love the G3S Atom but need more Presets? Check out the G3S Here.

  • 99 Banks with up to 16 Pre-sets per Bank
  • Programable Pre Effects Loop Buffer/Boost
  • Programable Post Effects Loop True Stereo VCA Amplifier
  • 6 x True-Bypass passive Stereo effects loops
  • Fully movable loops - Reorganise your entire signal chain, Per Pre-set, in seconds
  • 2 x Programable Outputs one of which is transformer isolated and phase reversible to eliminate earth loops and phase problems when using two amps
  • Built in Parallel and Wet/Dry configuration
  • Send up to 20 x programable mappable PC/CC MIDI Messages per pre-set
  • 2 x Expression pedal inputs capable of controlling the onboard pre and post effect loop amplifiers as well as sending multiple MIDI CC messages, each with separate heel/toe values
  • Program Reverb and Delay Trails/Spillover from any loop or combination of loops
  • Simple intuitive programming via easily navigated built in menu system
  • Ultra clean signal path to ensure your guitar signal is as pure as possible
  • Bluetooth enabled - *Connect to G3 iOS app to update software, backup pre-sets, and edit song lists
  • 7 x High Resolution Ultra-Bright* TFT LCD Screens: 1 x Main Screen 36mm x 48mm / 1.5" x 2" displaying Bank, Pre-set Number /Name, Pre/Post Gain levels and Menu System + 6 dedicated preset display screens 7mm x 25mm / 1/4" x 1" *Brightness Adjustable
  • Black anodized aluminium chassis – Light weight and hard wearing
  • Water resistant/ splash proof overlay with quick select, tactile embossed membrane switches
  • 8 x GigRig 'Optokick' Optical Footswitches - Designed by The GigRig, our footswitches use light instead of mechanics to do the foot switching and are milled from stainless steel, making them more robust than their mechanical alternatives. We believe these are the most reliable foot switches in the world.
  • FREE GigRig Generator Power Supply - The Heart of our Modular Power Supply range, with UK Mains lead included as standard.
  • Physical size: 29cm x 13cm x 7.8cm / 11.4" x 5.1" x 3.07"
  • Screen size: Approximately 5 x 3.8cm / 1.96"x 1.5"
  • Power Requirements: 9V DC (2.1mm centre neg) @850mA.We recommend the use of The GigRig Generator power supply supplied with The G3 Switching System.
  • Weight: 1.65kgs / 3.64lbs
