G3 Switching System
G3 Switching System
Effortless switching. Used by international artists. Industry standard rig control. G3 is the most advanced effects pedal board switching system in the world.
Effortless switching. Used by international artists. Industry standard rig control. G3 is the most advanced effects pedal board switching system in the world.

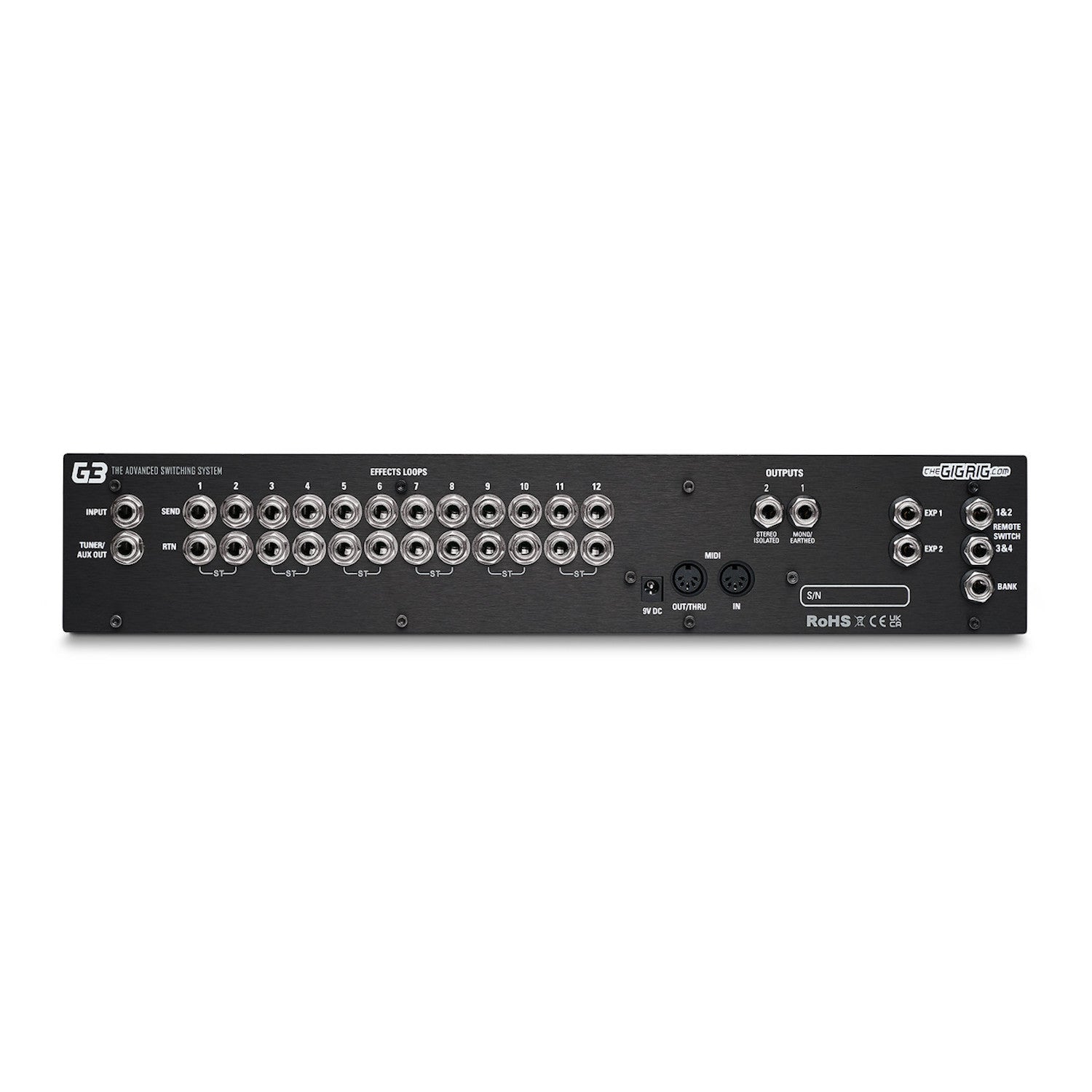

The GigRig's G3 pedal switcher - back view
The GigRig's G3 pedal switcher - back view
G3 Switching System for your Guitar Effects Pedals
G3 Switching System for your Guitar Effects Pedals
G3 Switching System
G3 Switching System
Effortless switching. Used by international artists. Industry standard rig control. G3 is the most advanced effects pedal board switching system in the world.
The GigRig's G3 pedal switcher - back view
G3 Switching System for your Guitar Effects Pedals
Effortless switching. Used by international artists. Industry standard rig control. G3 is the most advanced effects pedal board switching system in the world.
The GigRig's G3 pedal switcher - back view
G3 Switching System for your Guitar Effects Pedals
G3 Switching System
Effortless switching. Used by international artists. Industry standard rig control. G3 is the most advanced effects pedal board switching system in the world.
The GigRig's G3 pedal switcher - back view
G3 Switching System for your Guitar Effects Pedals
G3 Switching System
Effortless switching. Used by international artists. Industry standard rig control. G3 is the most advanced effects pedal board switching system in the world.
The GigRig's G3 pedal switcher - back view
G3 Switching System for your Guitar Effects Pedals

G3 Switching System

The GigRig
★★★★★ (33)
£1,295.00
Free UK delivery on orders over £200 — mainland UK, 1–2 business days
Same-day dispatch on in-stock orders before 12 noon (Mon–Fri)
30-day returns
Spread the cost with Klarna — available at checkout
Real support from the team that builds them

IN STOCK

The G3 is TheGigRig’s professional programmable pedalboard switcher, with 13 effects loops, 14 footswitches and 99 banks of presets. It gives you built-in wet/dry with no extra hardware, programmable pre- and post-gain volume on every preset, and a Hi-Def isolated, phase-reversible second output for running two amps with no earth loops.

A new standard for effects pedal lovers seeking the ultimate control and tonal transparency!

G3 marks a new standard in pedalboard effects control. Built on the legacy of our award winning G2, G3 delivers the ultimate in signal path purity with possibilities never before seen in a pedalboard switcher.

Hear your effects as they were designed to sound, unencumbered by compromises inherent in a standard pedalboard setup.

NEW! - G3 Bluetooth Web Editor!

Ships with a free GigRig Generator power supply - The heart of our Modular Power Supply range. Please select your desired mains power lead when adding to cart.

*Upgrade your power supply*

Upgrade to the New Gen-X-14 DC Power supply when you add to cart to get 10% off the Gen-X (please note - this will then be switched out with the Generator).

  • 99 Banks with up to 28 Pre-sets per Bank
  • Programable Pre Effects Loop Buffer/Boost
  • Programable Post Effects Loop True Stereo VCA Amplifier
  • 12 x True-Bypass passive mono effects loop which can paired for up to 6 x stereo effects
  • Fully movable loops - Reorganise your entire signal chain, Per Pre-set, in seconds
  • 2 x Programable Outputs one of which is transformer isolated and phase reversible to eliminate earth loops and phase problems when using two amps
  • Built in Parallel and Wet/Dry configuration
  • Send up to 20 x programable mappable PC/CC MIDI Messages per pre-set
  • 2 x Expression pedal inputs capable of controlling the onboard pre and post effect loop amplifiers as well as sending multiple MIDI CC messages, each with separate heel/toe values
  • Program Reverb and Delay Trails/Spillover from any loop or combination of loops
  • Simple intuitive programming via easily navigated built in menu system
  • Ultra clean signal path to ensure your guitar signal is as pure as possible
  • Bluetooth enabled - *Connect to G3 iOS app to update software, backup pre-sets, and edit song lists
  • High Resolution Ultra-Bright TFT LCD screen displaying Bank, Pre-set Number /Name and Pre/Post Gain levels and menu system (Brightness Adjustable)
  • Black anodized aluminium chassis
  • Water resistant/ splash proof overlay with quick select, tactile embossed membrane switches
  • 14 x Optical Footswitches - Designed by The GigRig

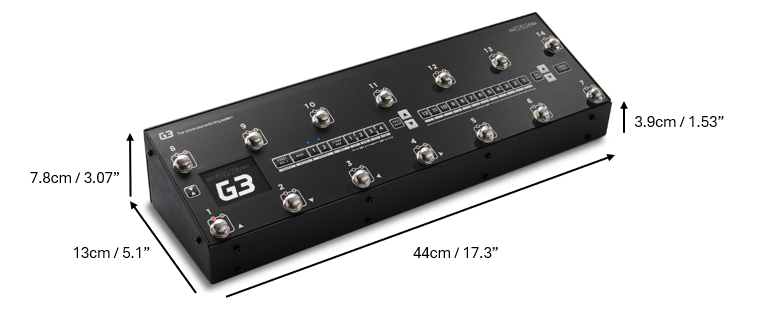

Dimensions:

Length: 44cm / 17.3"

Width: 13cm / 5.1"

Height (Back panel): 7.8cm / 3.07"

Height (Front panel): 3.9cm / 1.53"

Weight: 2kgs / 4.40lbs (Without Generator)

Screen size: Approximately 5 x 3.8cm / 1.96"x 1.5"

Power Requirements: 9V DC (2.1mm centre neg) @ 850mA.We recommend the use of The GigRig Generator power supply supplied with The G3 Switching System

The GigRig warrants the product to be free from defects in material and workmanship for a period of 1 year from the original date of purchase.


For full details on our warranty, please see product manuals.

Manufacturer:
The GigRig Ltd, Unit 15 Whitehill Industrial Pk, Royal Wootton Bassett, SN4 7DB

Authorised
Representative: EAS - Mustamäe tee 50, 10621 Tallinn, Estonia

Warning: For
indoor use only. Keep away from water. Keep away from Children.

★★★★★
★★★★★
★★★★★
★★★★★
