Three2One

$269.00
Tax included for UK only. Ex VAT price displayed for all other shipping destinations

The GigRig Three2One Guitar Switcher.

If you use multiple guitars with varying levels, TheGigRig Three2One V2 allows you to switch effortlessly between them and use the built in preamps to balance the levels as well as sending the signal from whatever guitar you're using to the Tuner Out for silent on-stage tuning.

The GigRig Three2One guitar selector features three inputs. You can now switch easily between 1-3 guitars or even line level inputs such as a keyboards or drum machines!

New orders ship with the opitonal Single Input setting included. This allows you to switch between all three preamps with a single cable.

To switch to the single input mode, remove the back of the metal case and move the lower central DIP switch to the OFF position.

All units ship in standard mode.

  • The GigRig Three2One guitar selector features three inputs. You can now switch easily between 1-3 guitars or even line level inputs such as a keyboards or drum machines!
  • After plugging your instruments in simply use the footswitch to cycle through them. Need more inputs? If you need to balance levels between differing instruments, then simply select the adjacent preamp button. This engages the pre-amp gain controls next to the LED displays. You can then easily cut or boost the individual inputs.
  • You can choose true bypass or preamp for each instrument.  User programmable functions with optional signal mute pre-sets and gain boosts up to X4.
  • We’ve doubled the voltage internally from 9v to 18v, so the Three2One has massive input headroom and can easily cope with a huge range of differing guitar pickup types (including active pickups), but remains ultra clean and quiet.
  • ​The Three2One uses the exclusively TheGigRig designed Optokick footswitch. It’s milled from incredibly tough marine quality stainless steel. The Optokick footswitch uses light instead of potentially un-reliable mechanical switching. We firmly believe it’s the most reliable footswitch in the world!
  • Power - 9V centre negative. Optimised for use with the GigRig Generator power supply.
  • Current Draw - 150mA
  • Input Impedance - Using the selectable amplifiers 1Meg Ohms on each input
  • Input Signal Handling - True Bypass. No limit, passive DC connection using relays. Buffered input. 8.6V peak to peak, Buffered with X2 gain: 8.6V peak to peak. With boost option engaged: 4V peak to peak.
  • Output Impedance - Using the Selectable amplifiers = 100 Ohms

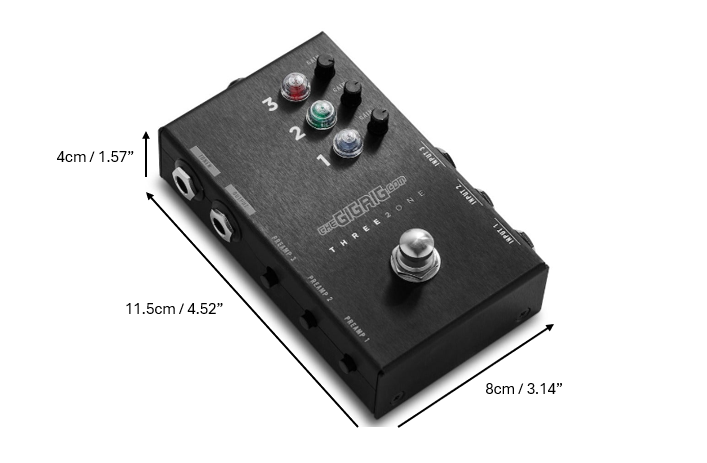

  • Dimensions - Box size: 11.5cm x 8cm x 4cm

Weight - 0.22kg / 0.49lbs

The GigRig warrants the product to be free from defects in material and workmanship for a period of 2 years from the original date of purchase.

If the product fails within the warranty period, The GigRig will repair or, at our discretion, replace the product and cover the cost of return shipping to the original purchaser.

This warranty covers defects in manufacturing discovered while using this product as recommended by The GigRig.

This warranty does not cover loss or theft, nor does the coverage extend to damage caused by misuse, abuse, unauthorized modification, improper storage, lightning, or natural disasters.

Damage caused by any of the above circumstances may result in a non-warranty repair fee.

Legal: In the case of malfunction, the purchaser’s sole recourse shall be repair or replacement, as described in the preceding paragraphs. The GigRig will not be held liable to any party for damages that result from the failure of this product. Damages excluded include, but are not limited to, the following: lost profits, lost savings, damage to other equipment, and incidental or consequential damages arising from the use, or inability to use this product. In no event will The GigRig be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. The GigRig disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
