Name: ABY-BABY
Brand: The GigRig
SKU: 140
Price: 189.00 GBP
Availability: InStock

The GigRig

£189.00

Tax included.

IN STOCK

The GigRig ABY BABY V3 is a powerful yet compact active ABY splitter that uses our Transformer-less, Balanced Isolation design. Output B is is also phase reversible.

With 3 separate modes of operation you can select the outputs individually or flip/flop between them. It also features our own OptoKick™ footswitches, designed for extreme durability.

With its huge amount of headroom the ABY BABY is designed to work with anything from standard passive instrument signal levels to higher-output line levels.

Quantity

FOOTSWITCH A – Activates output A
FOOTSWITCH B – Activates output B

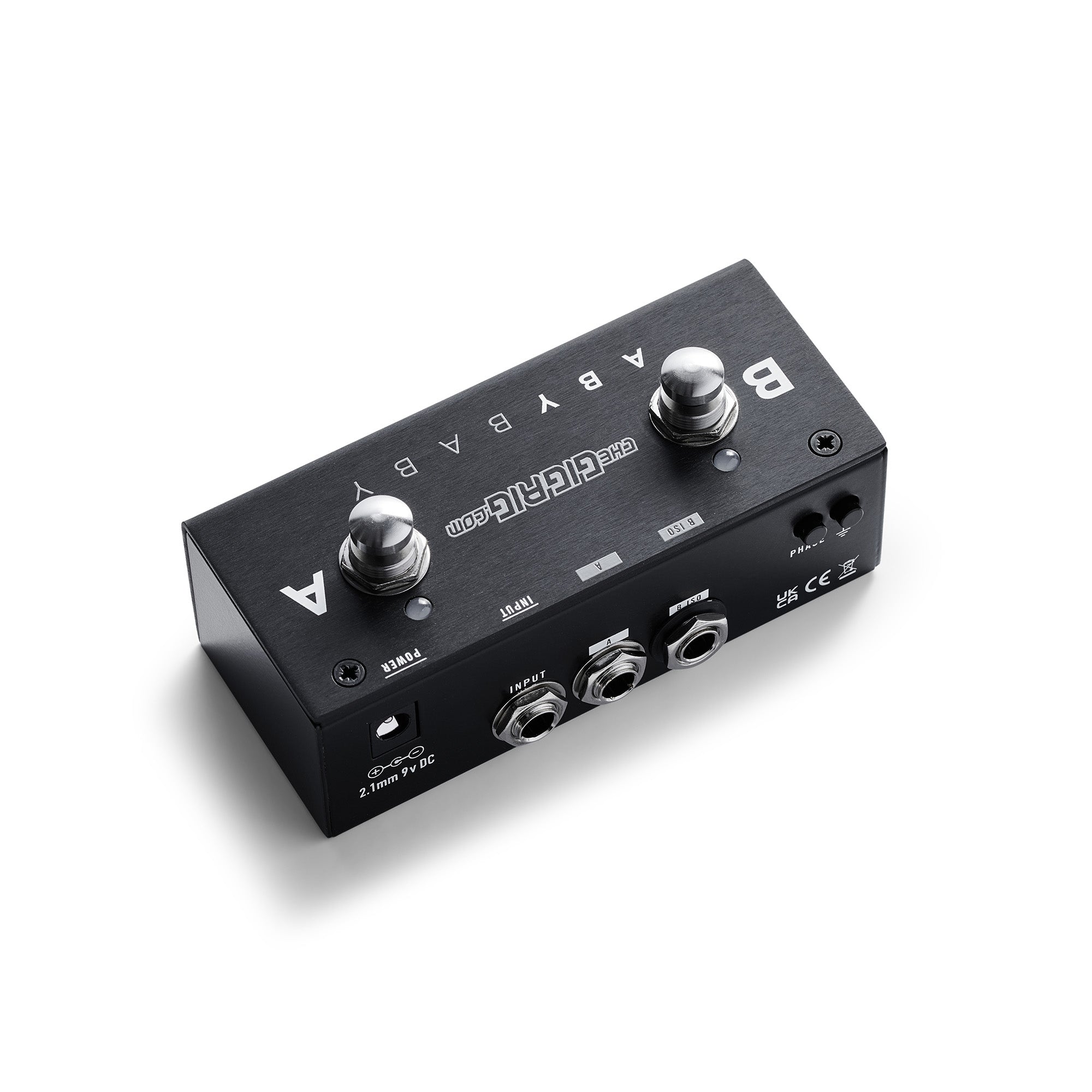

INPUT – Plug instrument or signal in here
POWER – Uses a 9V DC 2.1mm centre-negative power supply @150mA
OUT A – Low Impedance output
OUT B ISOLATED – Uses our Transformer-less Balanced Isolation design
OUT B PHASE – Reverses the phase on output B
EARTH LIFT – Lifts the ground connection on output B
