Virtual Battery

Name: Virtual Battery
Brand: The GigRig
SKU: 604
Price: 39.00 GBP
Availability: InStock

The GigRig

£39.00

Tax included for UK only. Ex VAT price displayed automatically for all other shipping destinations

VB BC

VB DC

Quantity

The Virtual Battery is a single-output isolated power adapter that gives one pedal the same clean 9V it would get from a battery, up to 120mA and isolated to 1000V. It is made for the pedals that only ever sounded right on a battery, germanium fuzzes, wahs and vintage overdrives, and comes with either a DC connector or a battery clip.

From Germanium Fuzz Faces to Wah pedals sometimes only a battery will do.

If you try to power them from a non-isolated source, such as a daisy chain, they can be noisy and in some cases can even damage your precious pedals.

How would you like all the benefits of batteries with none of the drawbacks?

TheGigRig Virtual Battery is the answer.

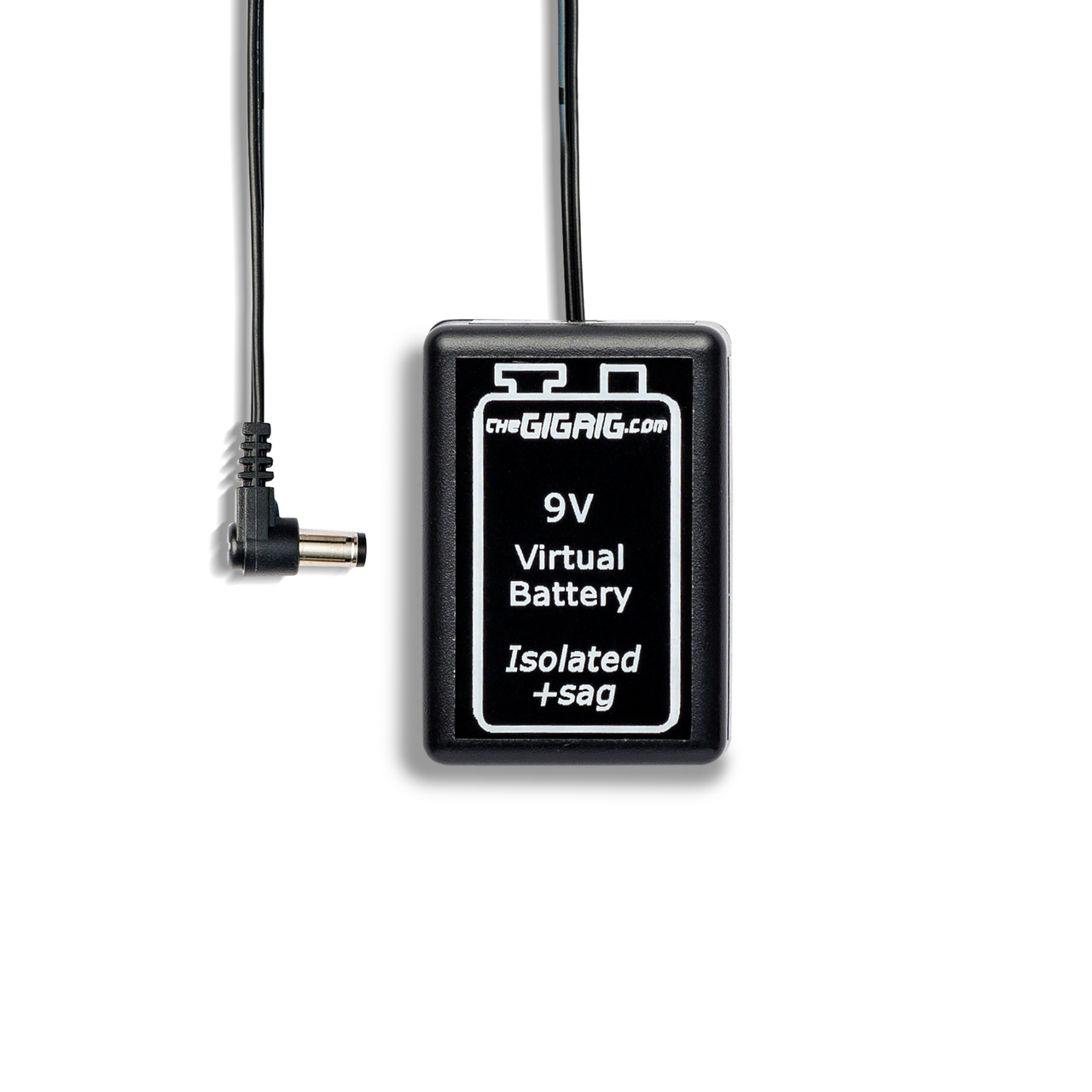

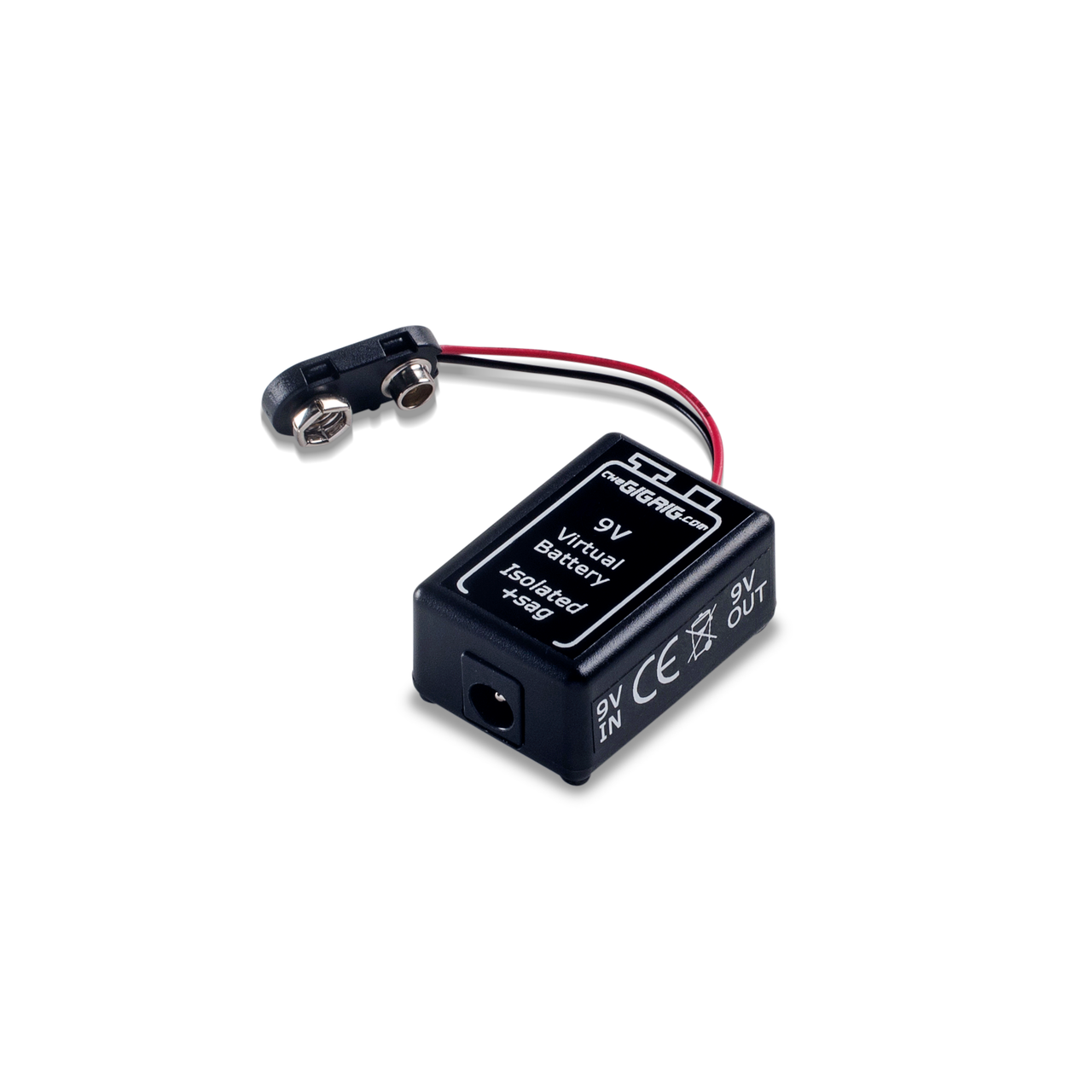

Available with a DC connector (VB-DC) or a battery clip (VB-BC) - please select your preferred option.

Designed to deliver filtered, isolated 120mA of almost totally noise and hum free 9V DC power for guitar effects.
Totally isolated up to 1000V. This means that there is no direct connection between the inputs and the outputs of the Virtual Battery. Isolation is achieved using a miniature toroidal transformer.
The Virtual Battery contains an output safety fuse. This fuse is designed to blow at continuous currents of over 300mA. However, being a virtual fuse, it will re-heal approximately 4 seconds after the load has been removed.
Designed with an internal resistance of 10 Ohms.

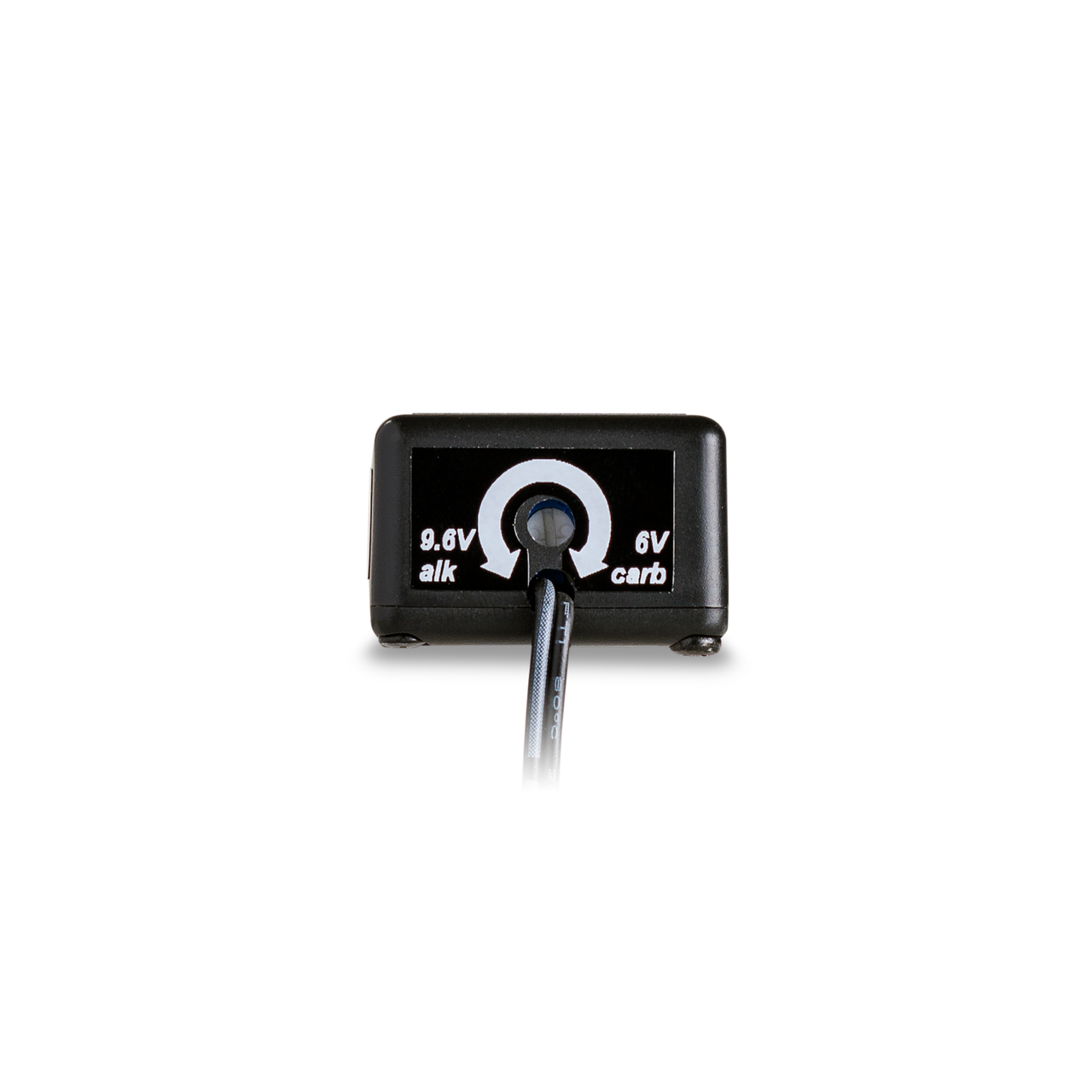

The Virtual Battery also features a small user pre-set voltage control

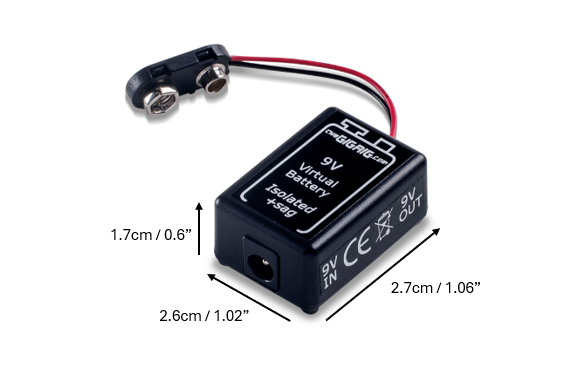

Dimensions:

Length: 2.6cm / 1.02"

Width: 2.7cm / 1.06"

Height: 1.7cm / 0.6"

Input Voltage: 9.0V +/- 10%

Output Voltage: +/- 5%

Isolation: 1000V

Isolation Resistance: 500Meg ohm

Case: Black ABS plastic.

Usable Temperature Range: -10 to +50 Deg C

Efficiency: 74%

Isolation Capacitance: 4.7nF
